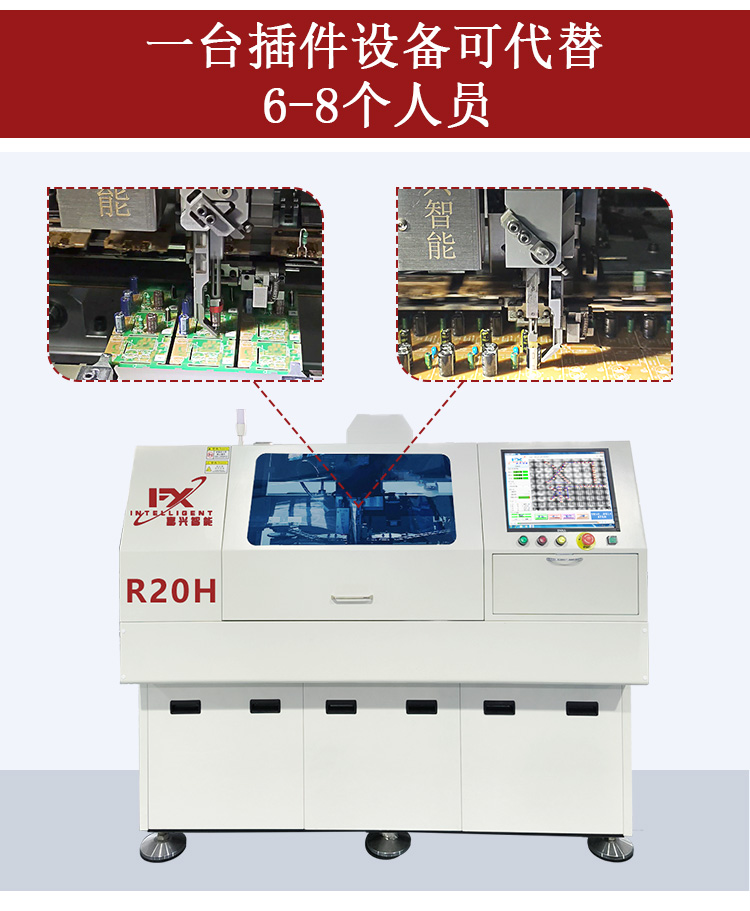

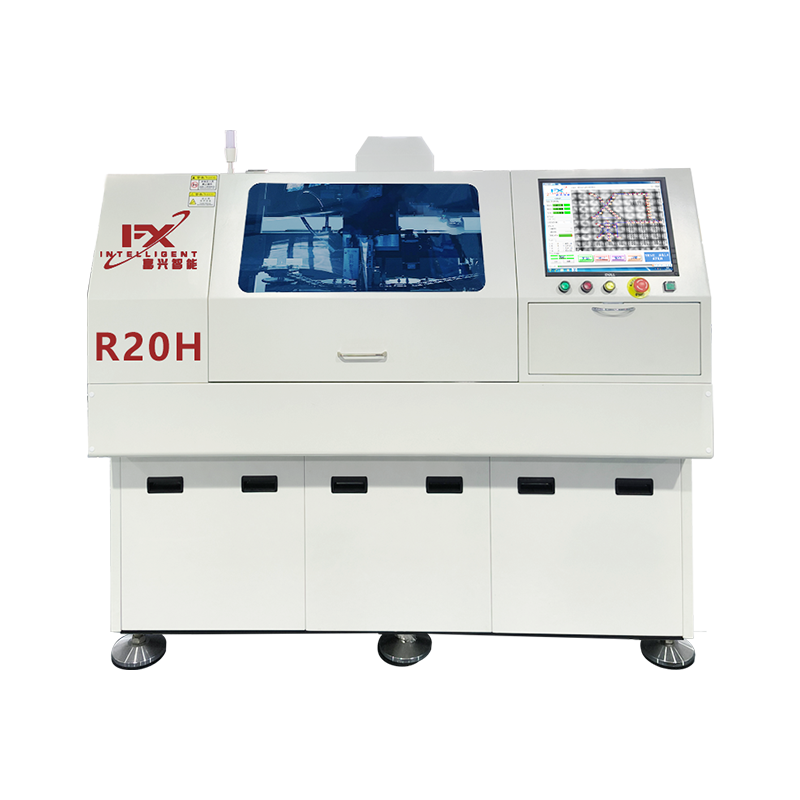

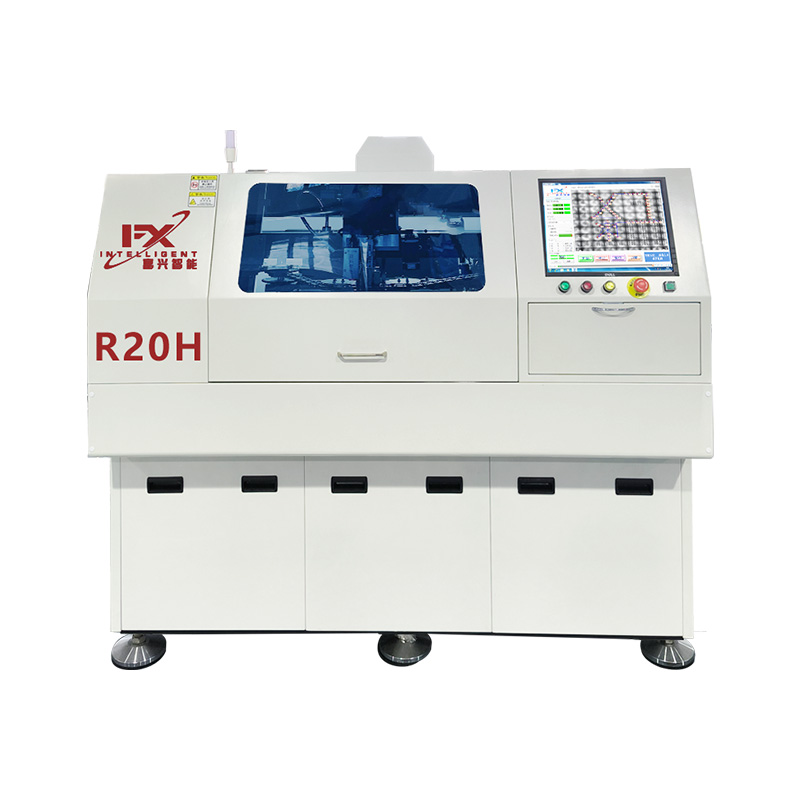

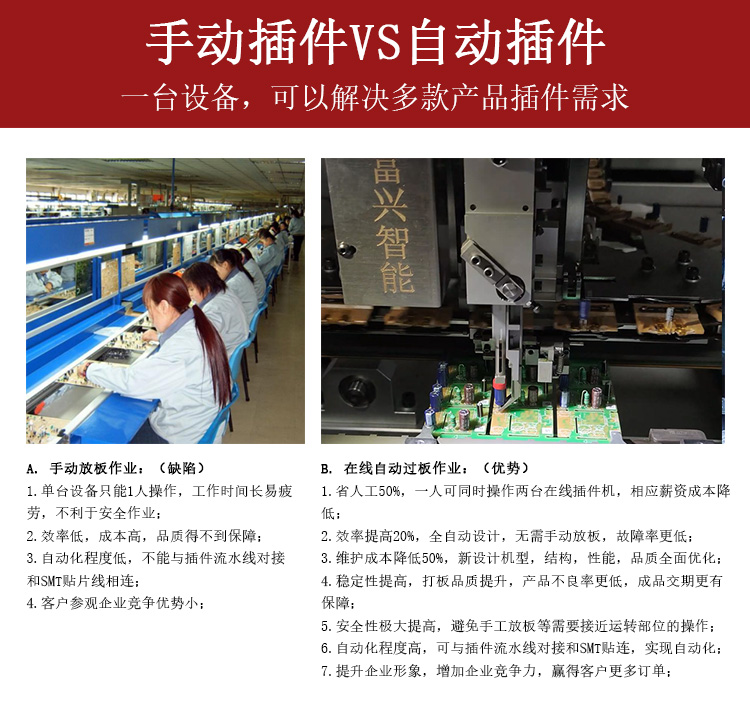

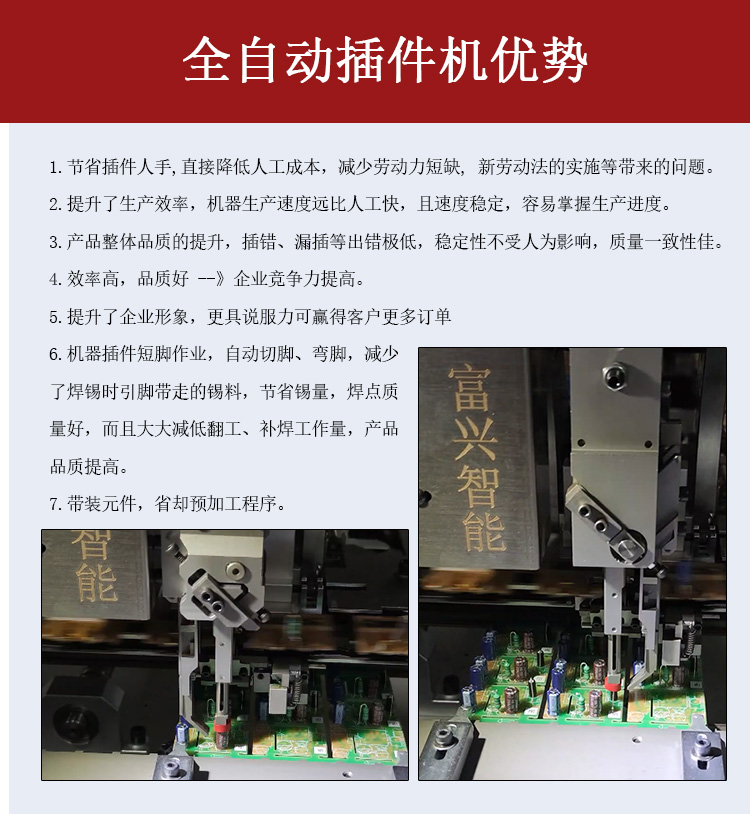

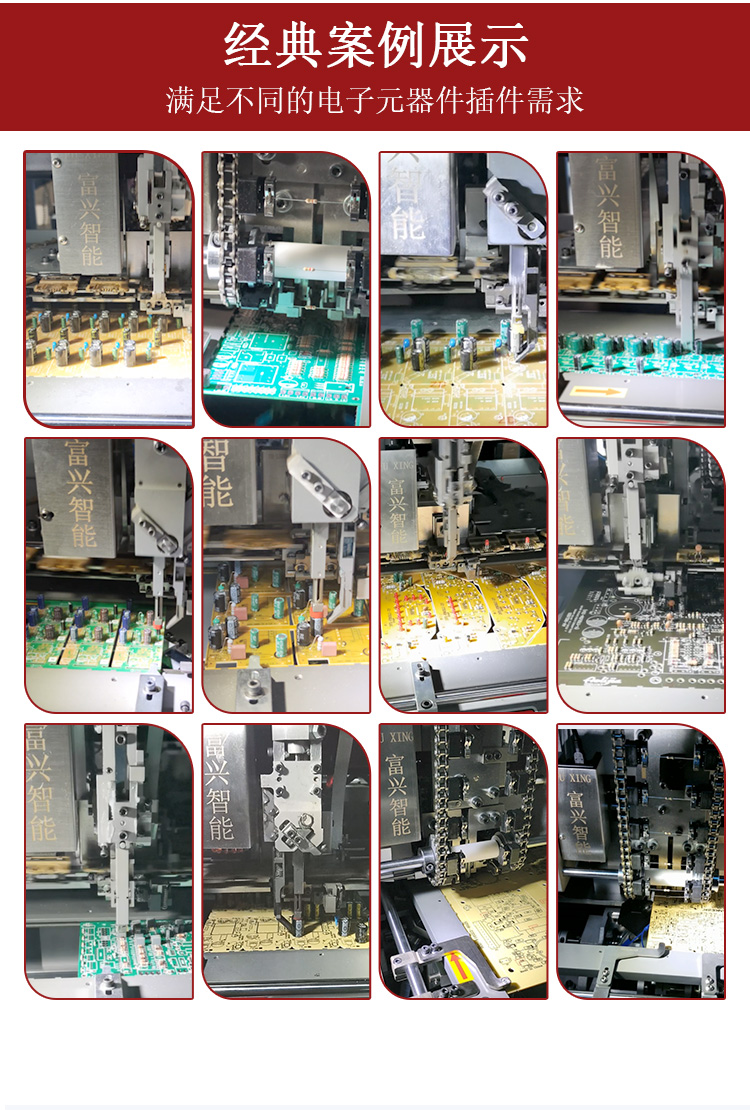

立式離線插件機R20H

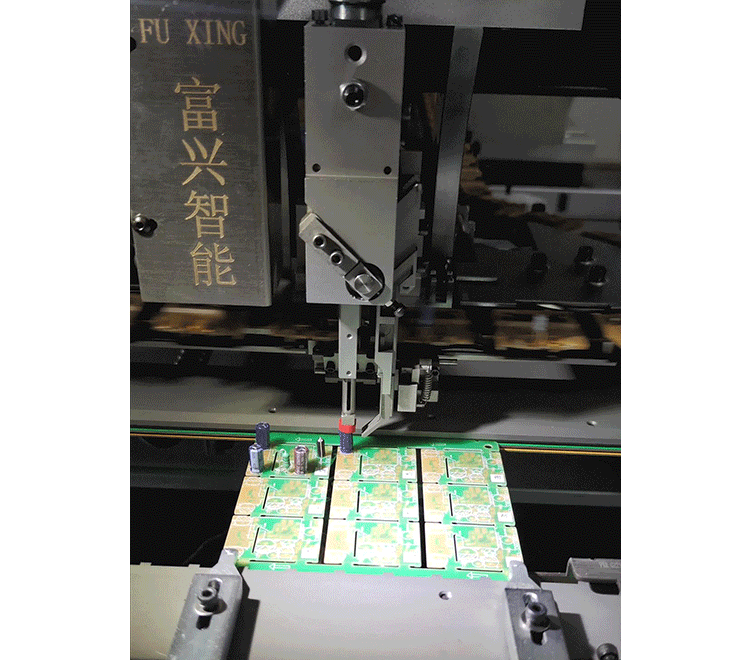

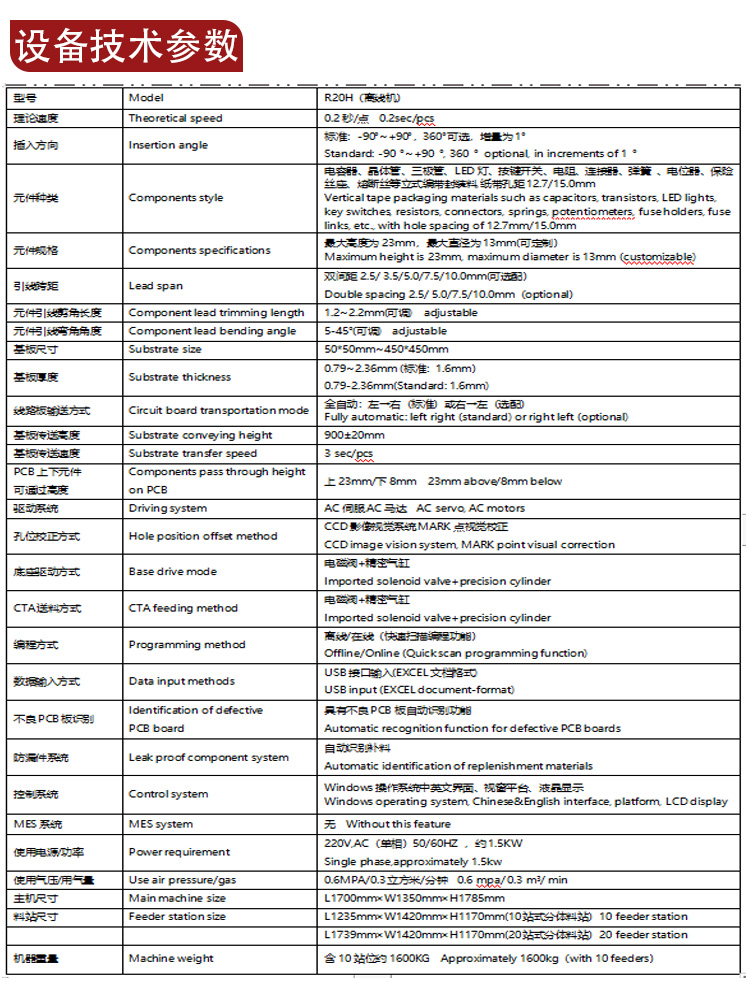

型號 | Model | R20H（離線機） |
理論速度 | Theoretical speed | 0.2秒/點 0.2sec/pcs |
插入方向 | Insertion angle | 標準：-90°~+90°，360°可選，增量為1° Standard: -90 °~+90 °, 360 ° optional, in increments of 1 ° |

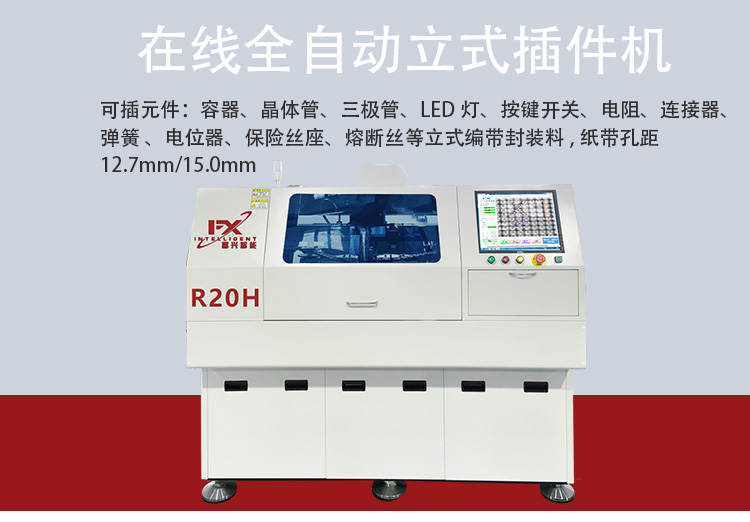

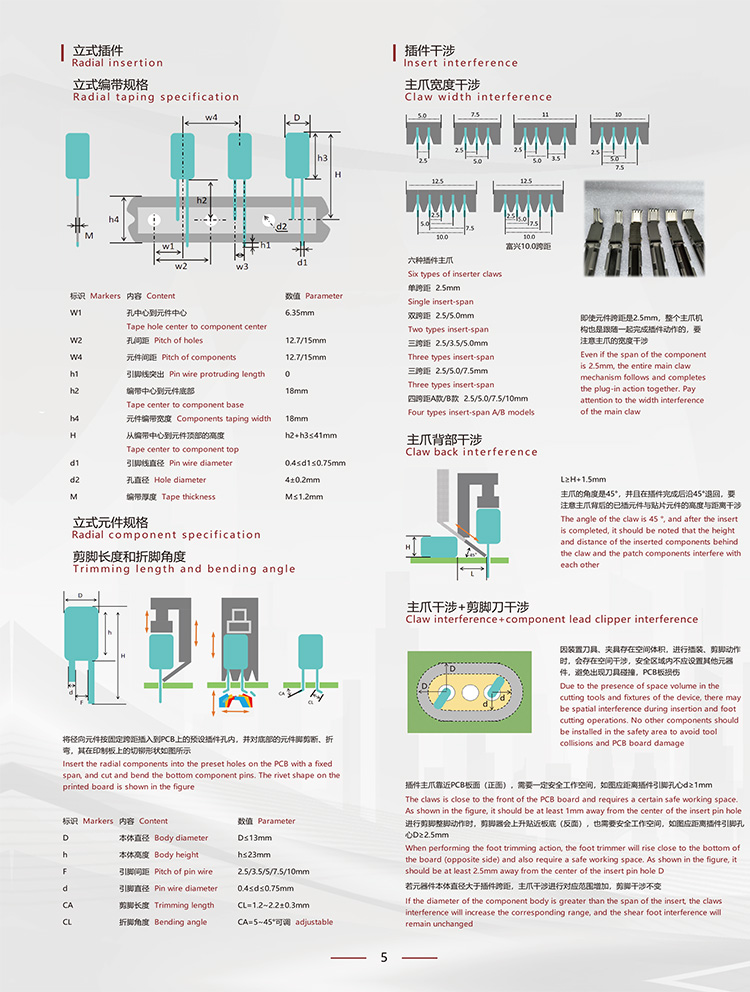

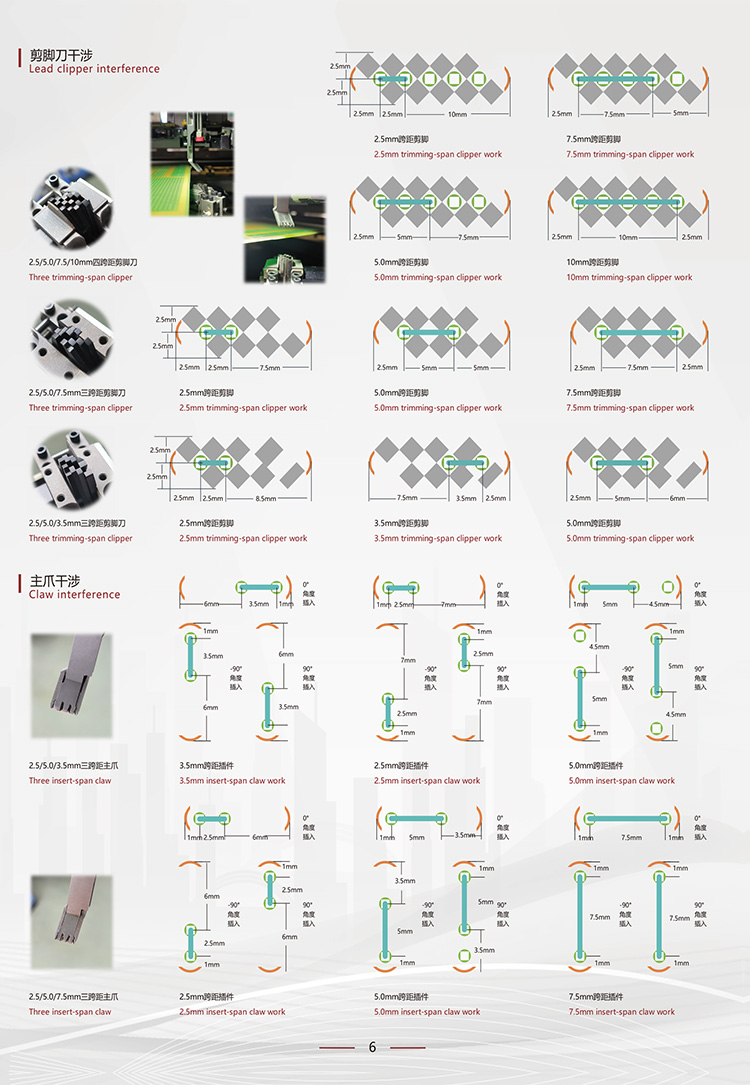

元件種類 | Components style | 電容器、晶體管、三極管、LED燈、按鍵開關、電阻、連接器、彈簧 、電位器、保險絲座、熔斷絲等立式編帶封裝料,紙帶孔距12.7/15.0mm Vertical tape packaging materials such as capacitors, transistors, LED lights, key switches, resistors, connectors, springs, potentiometers, fuse holders, fuse links, etc., with hole spacing of 12.7mm/15.0mm |
元件規格 | Components specifications | 最大高度為23mm，最大直徑為13mm(可定制） Maximum height is 23mm, maximum diameter is 13mm (customizable) |
引線跨距 | Lead span | 雙間距2.5/ 3.5/5.0/7.5/10.0mm(可選配） Double spacing 2.5/ 5.0/7.5/10.0mm（optional） |
元件引線剪角長度 | Component lead trimming length | 1.2~2.2mm(可調) adjustable |
元件引線彎角角度 | Component lead bending angle | 5-45°(可調) adjustable |
基板尺寸 | Substrate size | 50*50mm~450*450mm |
基板厚度 | Substrate thickness | 0.79~2.36mm (標準：1.6mm） 0.79-2.36mm(Standard: 1.6mm) |
線路板輸送方式 | Circuit board transportation mode | 全自動：左→右（標準）或右→左（選配） Fully automatic: left right (standard) or right left (optional) |
基板傳送高度 | Substrate conveying height | 900±20mm |
基板傳送速度 | Substrate transfer speed | 3 sec/pcs |
PCB上下元件 可通過高度 | Components pass through height on PCB | 上23mm/下8mm 23mm above/8mm below |
驅動系統 | Driving system | AC伺服,AC馬達 AC servo, AC motors |
孔位校正方式 | Hole position offset method | CCD影像視覺系統,MARK點視覺校正 CCD image vision system, MARK point visual correction |
底座驅動方式 | Base drive mode | 電磁閥+精密氣缸 Imported solenoid valve+precision cylinder |
CTA送料方式 | CTA feeding method | 電磁閥+精密氣缸 Imported solenoid valve+precision cylinder |
編程方式 | Programming method | 離線/在線（快速掃描編程功能） Offline/Online (Quick scan programming function) |
數據輸入方式 | Data input methods | USB接口輸入(EXCEL文檔格式) USB input (EXCEL document-format) |
不良PCB板識別 | Identification of defective | 具有不良PCB板自動識別功能 Automatic recognition function for defective PCB boards |
防漏件系統 | Leak proof component system | 自動識別補料 Automatic identification of replenishment materials |
控制系統 | Control system | Windows操作系統中英文界面、視窗平臺、液晶顯示 Windows operating system, Chinese&English interface, platform, LCD display |
MES系統 | MES system | 無 Without this feature |
使用電源/功率 | Power requirement | 220V,AC（單相）50/60HZ ，約1.5KW |
使用氣壓/用氣量 | Use air pressure/gas | 0.6MPA/0.3立方米/分鐘 0.6 mpa/ 0.3 m3/ min |
主機尺寸 | Main machine size | L1700mm×W1350mm×H1785mm |
料站尺寸 | Feeder station size | L1235mm×W1420mm×H1170mm(10站式分體料站）10 feeder station |
L1739mm×W1420mm×H1170mm(20站式分體料站）20 feeder station | ||
機器重量 | Machine weight | 含10站位約1600KG Approximately 1600kg（with 10 feeders） |
