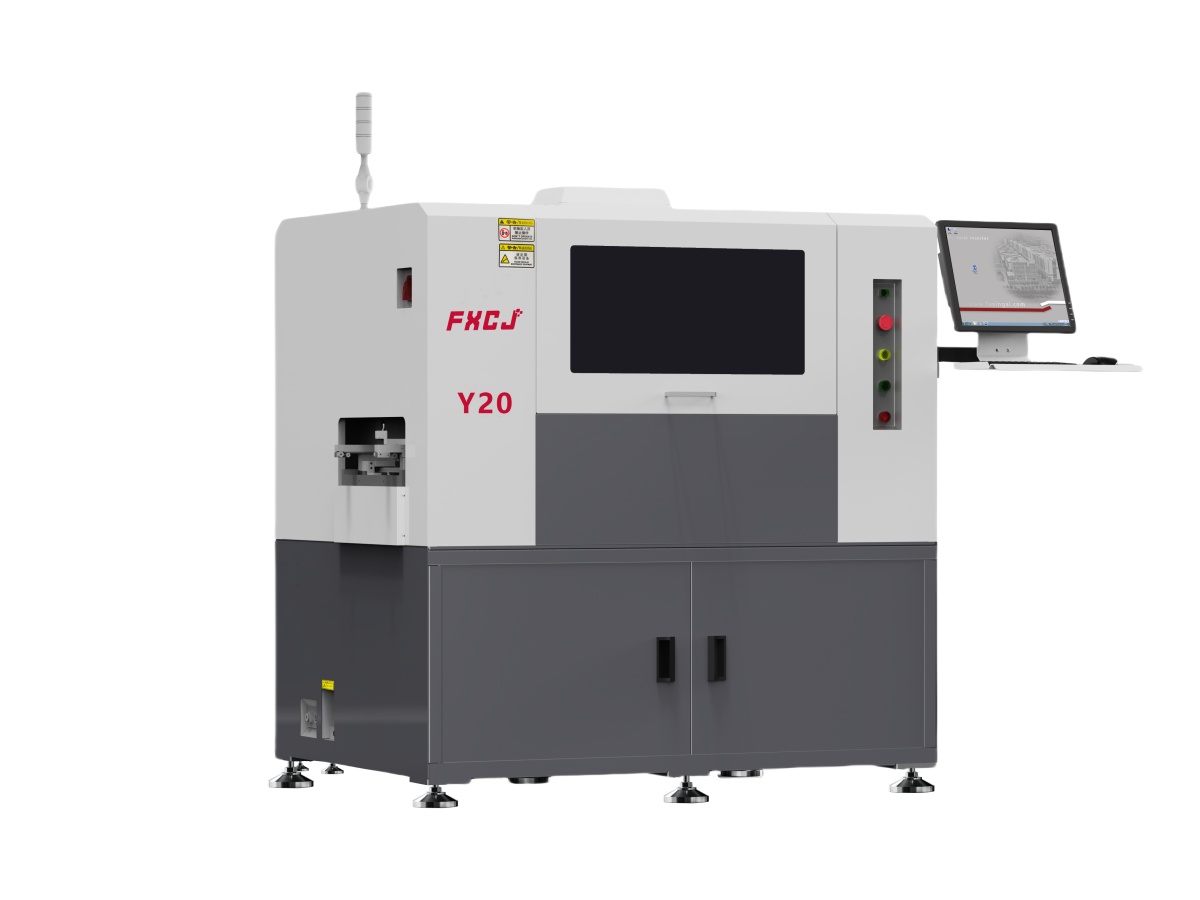

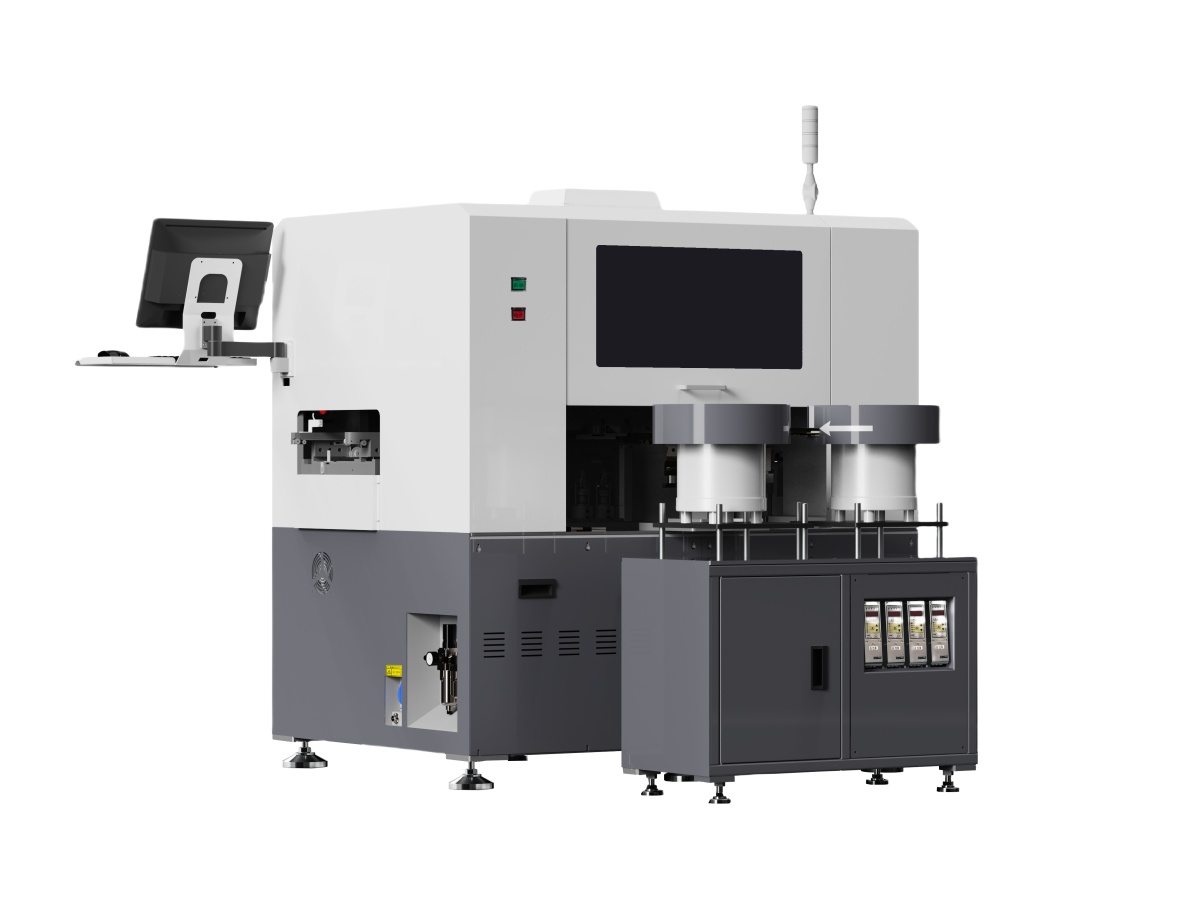

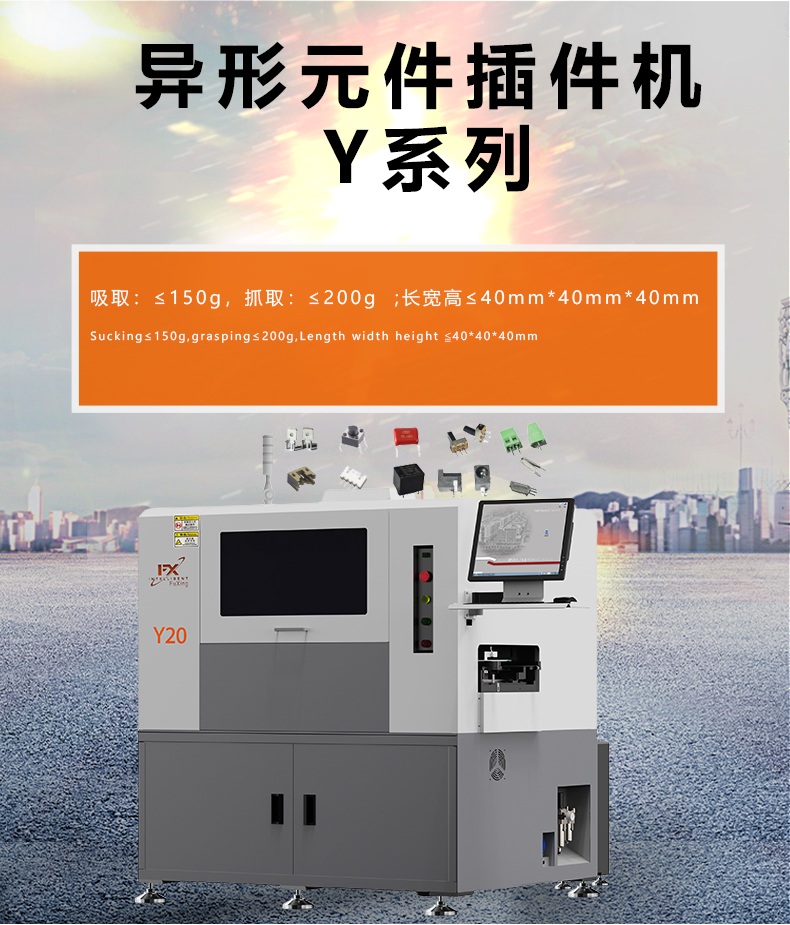

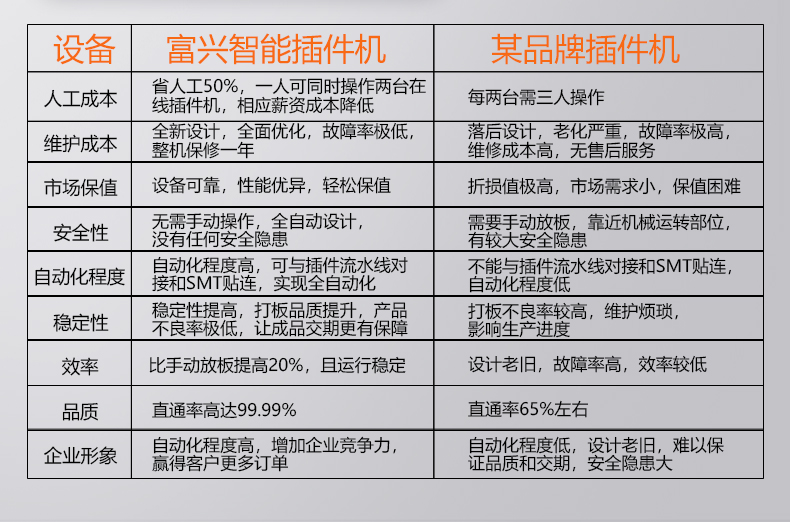

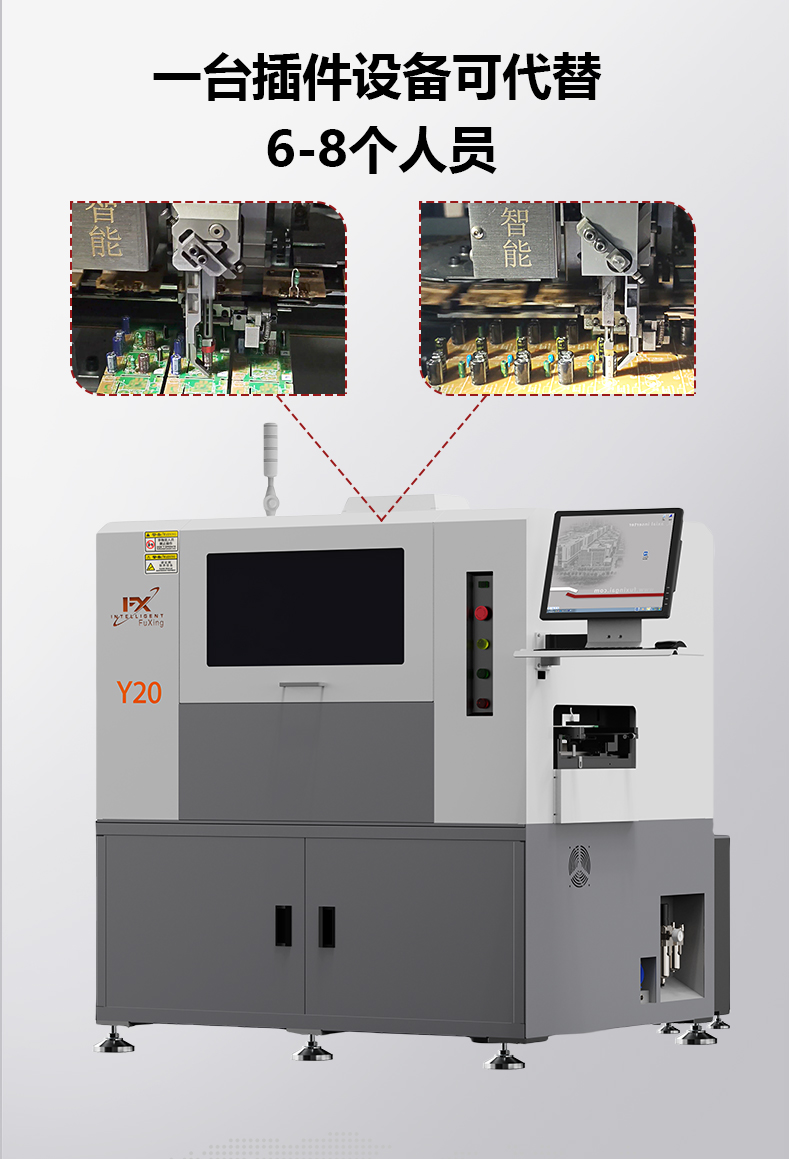

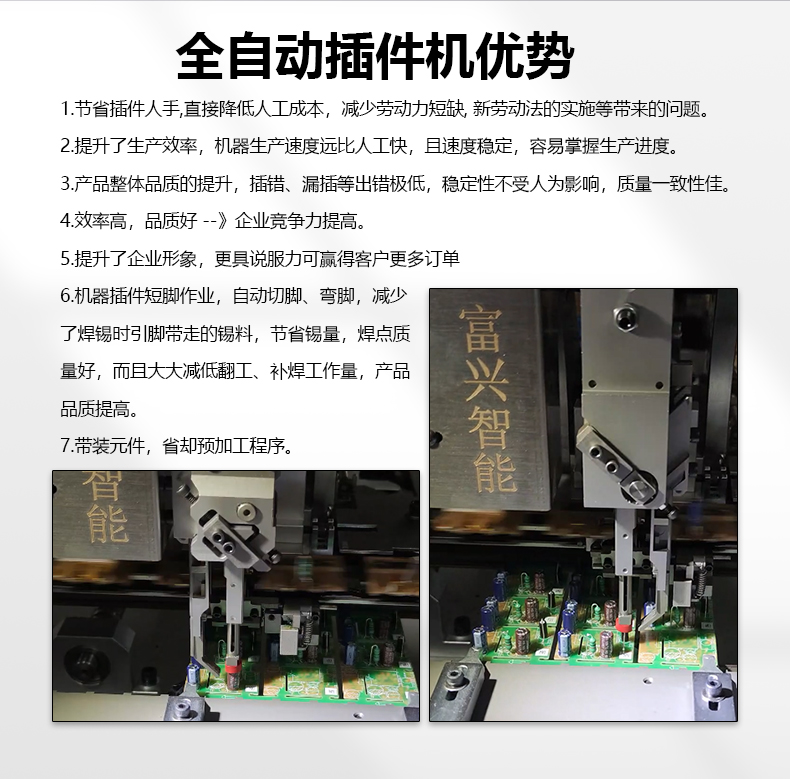

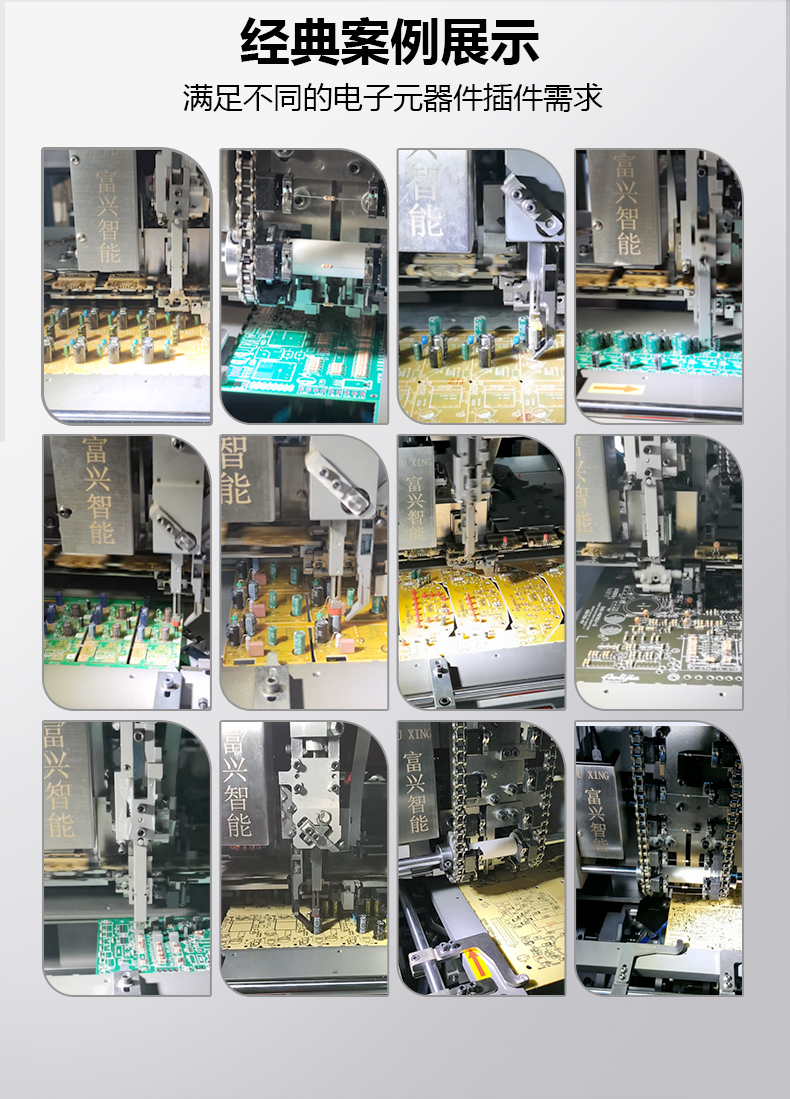

全自動異形元件插件機Y20

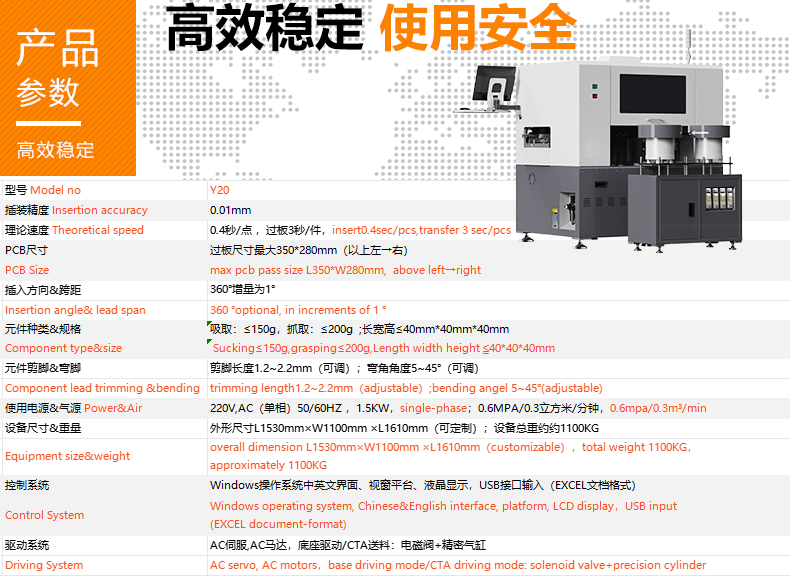

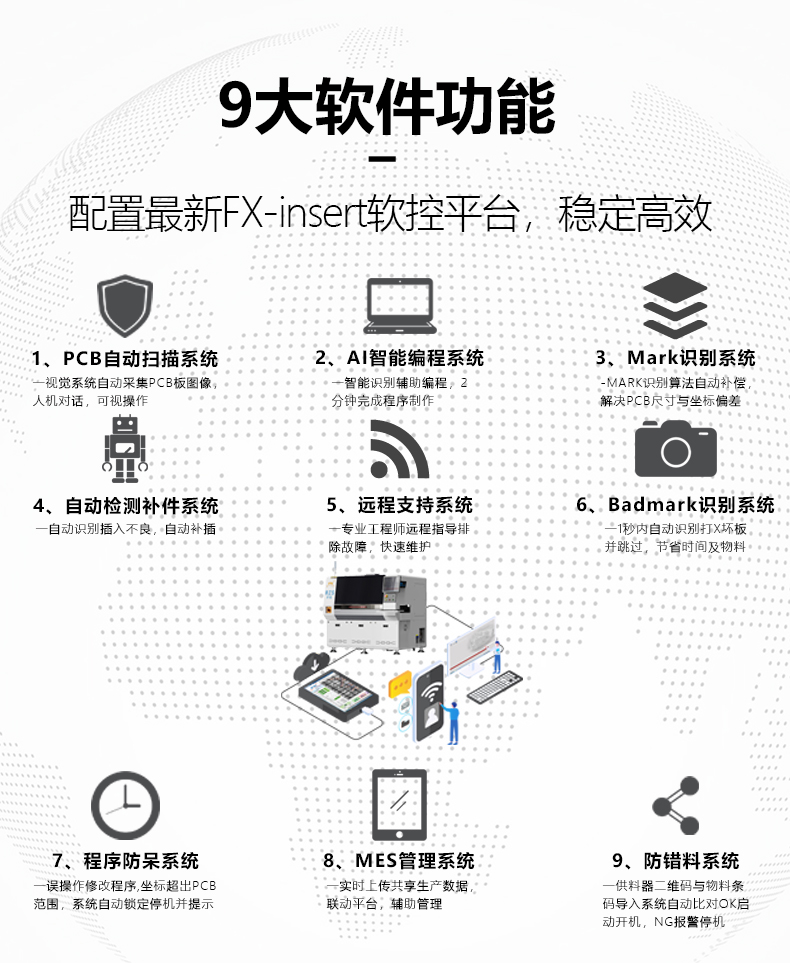

| 型號 Model no | Y20 | |
| 插裝精度 Insertion accuracy | 0.01mm | |
| 理論速度 Theoretical speed | 0.4秒/點 ，過板3秒/件，insert0.4sec/pcs,transfer 3 sec/pcs | |
| PCB尺寸 | 過板尺寸最大350*280mm（以上左→右） | |
| PCB Size | max pcb pass size L350*W280mm, above left→right | |
| 插入方向&跨距 | 360°增量為1° 360 °optional, in increments of 1 °； | |
| Insertion angle& lead span | 360 °optional, in increments of 1 ° | |
| 元件種類&規格 | 吸?。骸?50g，抓?。骸?00g ;長寬高≤40mm*40mm*40mm Sucking≤150g,grasping≤200g | |
| Component type&size | Sucking≤150g,grasping≤200g,Length width height ≦40*40*40mm | |
| 元件剪腳&彎腳 | 剪腳長度1.2~2.2mm（可調）；彎角角度5~45°（可調） | |
| Component lead trimming &bending | trimming length1.2~2.2mm（adjustable）;bending angel 5~45°(adjustable) | |
| 使用電源&氣源 Power&Air | 220V,AC（單相）50/60HZ ，1.5KW，single-phase；0.6MPA/0.3立方米/分鐘，0.6mpa/0.3m3/min | |
| 設備尺寸&重量 | 外形尺寸L1530mm×W1100mm ×L1610mm（可定制）；設備總重約約1100KG | |
| Equipment size&weight | overall dimension L1530mm×W1100mm ×L1610mm（customizable），total weight 1100KG， approximately 1100KG | |
| 控制系統 | Windows操作系統中英文界面、視窗平臺、液晶顯示，USB接口輸入（EXCEL文檔格式） | |
| Control System | Windows operating system, Chinese&English interface, platform, LCD display，USB input (EXCEL document-format) | |
| 驅動系統 | AC伺服,AC馬達，底座驅動/CTA送料：電磁閥+精密氣缸 | |
| Driving System | AC servo, AC motors，base driving mode/CTA driving mode: solenoid valve+precision cylinder | |
